For rope access climbing.

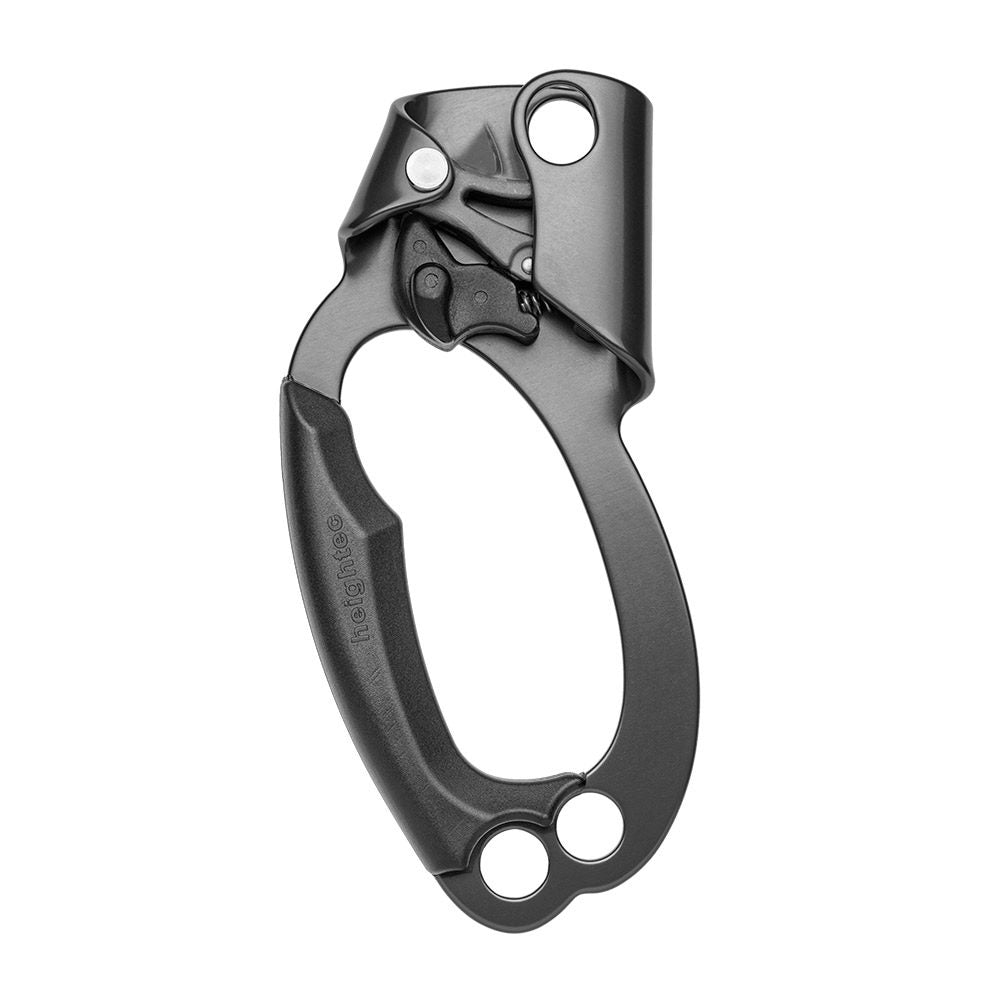

Left handed, handled ascender rope access device.

When tested on new Tectra 11 mm low stretch rope, these handled ascenders were found to be 25% stronger than their most popular sharp toothed competitor, with average breaking loads up to 675 kg for X-cams versus 535 kg for the established design.

However, the greatest increase in performance is exhibited if the ascender continues to be loaded after the sheath of the rope has ruptured.

In this situation, X-Cams will hold up to 200 kg on the broken sheath and rope cores. Established toothed designs supported only around 30 kg in heightec tests – nowhere near enough to support a person.

heightec X-Cam ascenders therefore significantly reduce the possibility of complete system failure by exerting a considerable hold on a rope after the sheath has broken.

X-Cam has a more advanced tooth design than traditional cams and is more suitable for industrial applications as it does not pluck the rope, so reducing rate of rope wear.

It maintains a high degree of grip – even on old or dirty rope.

The handle design is ergonomically positioned and profiled for optimal pulling and greater comfort to the user.

Contains high strength alloy with stainless steel friction surfaces.

Two attachment points allow cowstail and footloop to be connected separately which eliminates the need to open a loaded karabiner.



X-Cam™ design gives increased performance over traditional sharp tooth design

• Cam exerts considerable grip on rope after sheath has broken
• Cam doesn’t pluck rope
• Easy to remove from rope if accidentally jammed into knot

Ergonomic shape with profile grip

• Giving optimum pulling position
• Improved comfort

Two attachment points

• Keeps cowstail and footloop separate
• Eliminates need to open a loaded karabiner



PULSAR X-Cam Handled Ascender Rope Access Device, right handed; is also available.
