3M Scotchlok Electrical IDC 314-POUCH, Pigtail, Self-Stripping, Blue, 22-14 AWG, 50 per pouch, 500 /Case
$1.45
Need a quote or PO?
Talk to our team for a quote or purchase order based on your needs.
Delivery info

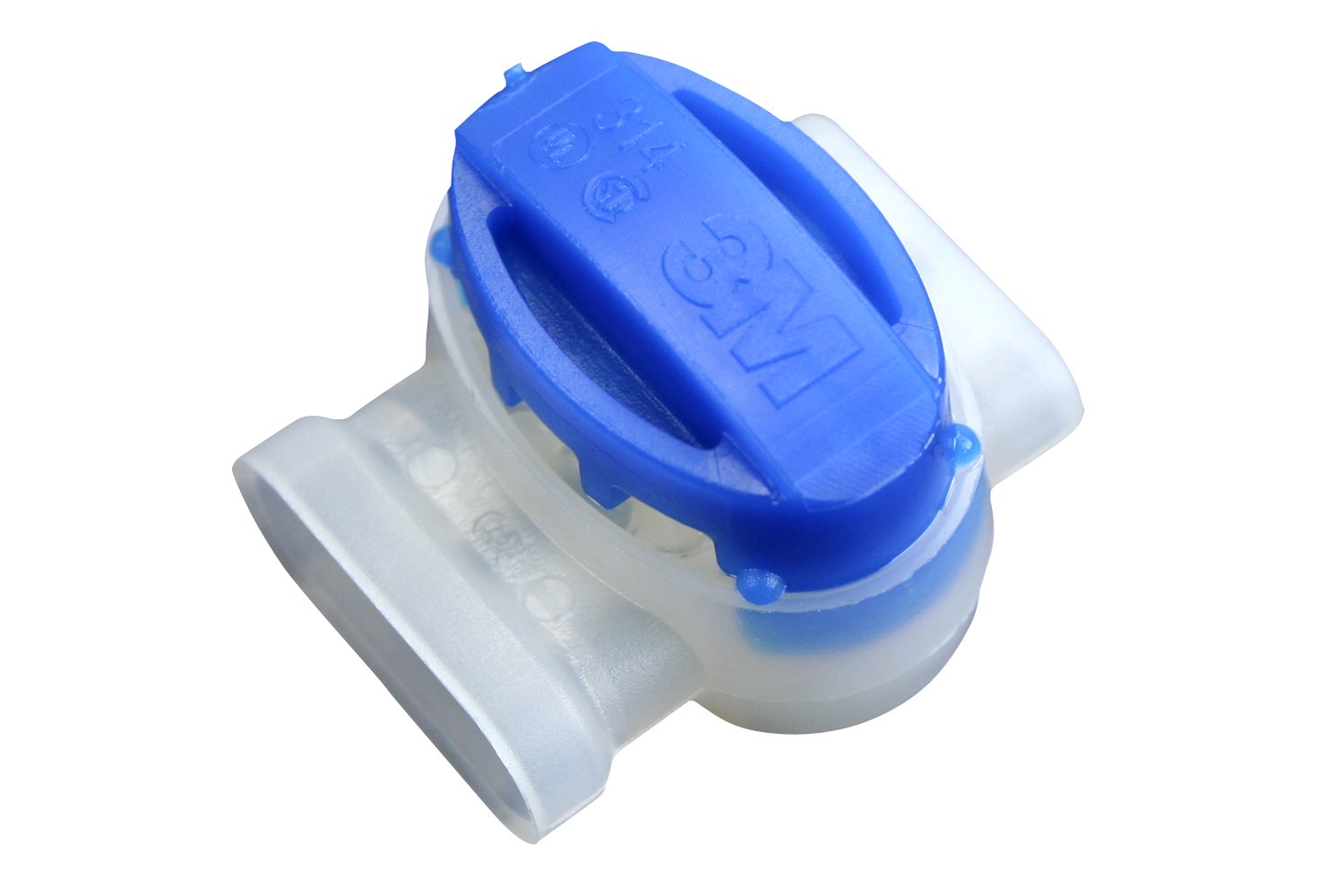

Some 50 years after 3M introduced the industry's original insulation displacement connector (IDC), 3M Scotchlok IDC's continue to offer quick installation and reliability. They are easy to use and can save time. To install one, just squeeze� no stripping or twisting required. The 3M Scotchlok IDC Connector 314 electrically connects two or three wire ends, insulates the connection, and provides a moisture resistant seal.
3M Scotchlok Insulation Displacement Connector 314 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 105 degrees C. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Features:
- Accommodates 0.5 - 1.5mm2 solid/stranded
- Filled with a moisture resistant grease that is mineral oil based
- Flame retardant
- Moisture resistant in wet environment applications when used with distribution box.
Brand
3M
Custom Variant
3M-7100166936
GTIN
10054007092305
Manufacturer
3M
MPN
7100166936
Unit of Measure
Each
