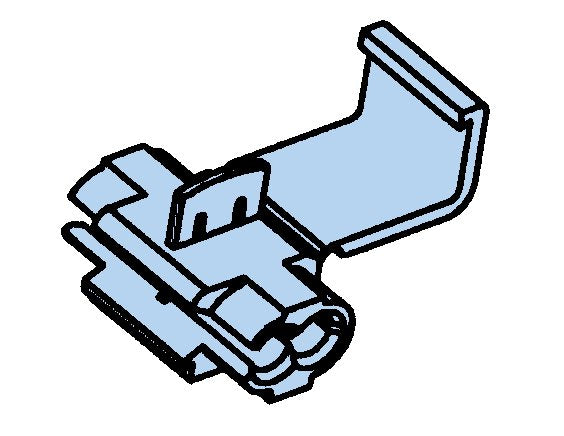

3M Scotchlok IDC Run and Tap Connector 560, 0.75 mm� - 1.0 mm� Solid/Stranded / 1.5 mm� Stranded

Some 50 years after 3M introduced the industry's original insulation displacement connector (IDC), 3M Scotchlok IDC's continue to offer quick installation and reliability. They are easy to use and can save time. To install one, just squeeze� no stripping or twisting required. The 3M Scotchlok IDC Connector 560 / 560B electrically connects a (tap) wire end to a through (run) wire and insulates the connection.

3M Scotchlok Insulation Displacement Connector 560/560B is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 105 degrees C. UL Listed and RoHS 2011/65/EU Compliant.

Features:

• Accommodates 0.75 - 1.0mm2 solid/stranded, 1.5mm2 stranded
• Connects a (tap) wire 0.75 mm� to 1.5 mm� solid/stranded, 1.5mm� stranded end to a through (run) wire and insulates the connection
• Flame retardant
• Helps provide a moisture-resistant seal
