3M Scott Fire & Safety backplate, harness & pneumatics (XP100136348)

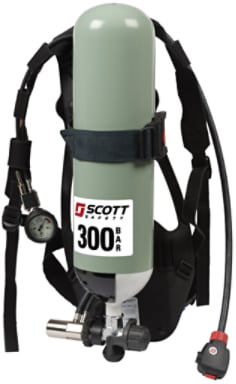

The 3M Scott Sigma 2 Type 2 self-contained breathing apparatus combines the highest level of respiratory protection in a simple-to-operate, cost-effective piece of equipment that meets the needs of industrial and marine firefighting.

Combining low cost and simple maintenance with high levels of comfort, the 3M Scott Sigma 2 positive-pressure self-contained breathing apparatus features an ergonomically designed lightweight backplate and fully adjustable harness. At the heart of the Sigma 2 set is a simple and reliable two-stage pneumatic system. A first breath-activated positive-pressure demand valve provides low breathing resistance and excellent dynamic performance � particularly at high flow rates. A first-stage pressure-reducing valve features only two moving parts and accepts cylinder pressures of up to 300 bar without adjustment. The system includes a shoulder-mounted combined pressure indicator with photo-luminescent face markings for low-light legibility and a robust stainless steel and polycarbonate case with a protective rubber shroud. A warning whistle has an operating pressure of 55 bar. Approved to EN 137:2006 Type 2, MED (Shipswheel approval), ISO 20269-2 and ISO 23269-3.

Features:

• Accepts wide range of 200 and 300 bar cylinders
• Compact first breath-activated demand valve with bypass
• Compatible with wide range of face masks from the 3M Scott Vision 3 and 3M Scott Promask PP lines
• Corrosion-resistant nickel-plated components
• High-performance pneumatic system
• Kevlar blend flame retardant webbing with Kevlar cylinder band
• Simple user operation, all components are user serviceable, low cost and maintainable
